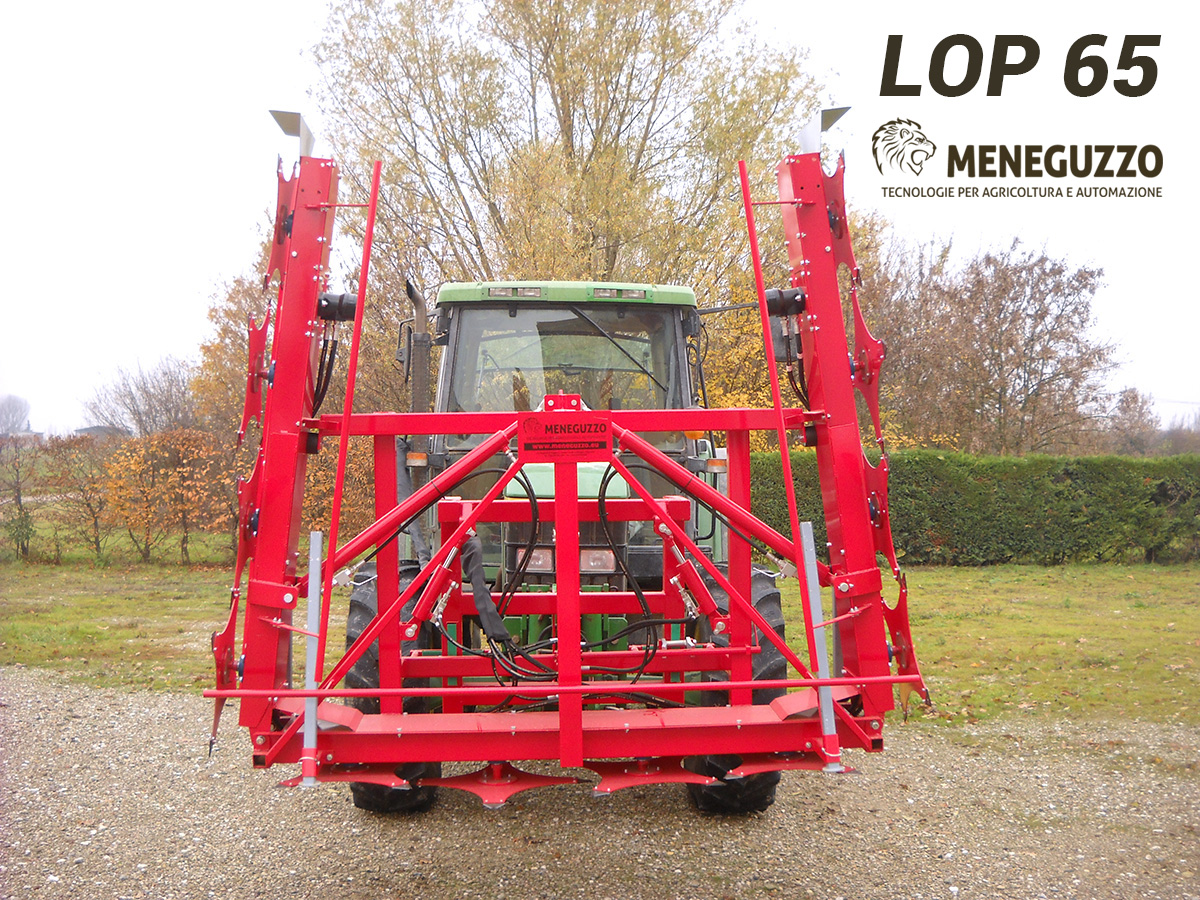

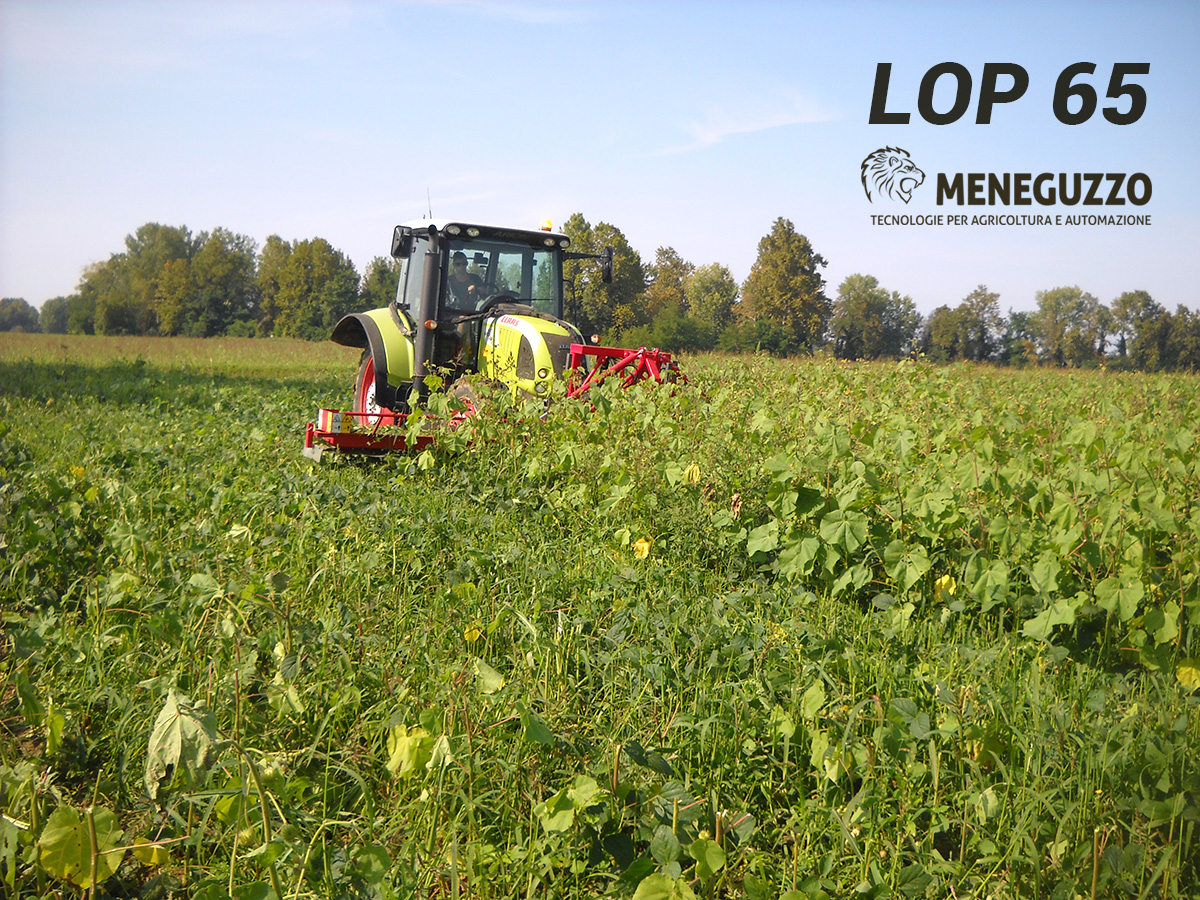

LOP 65/90/120 Weed trimmer

The new LOP 65/90/120 weed trimmer is a high-end machine with the characteristic of having a modular cutter bar.

Technical data

In the modular LOP 65/90/120 weed trimmer the standard cutter bar is 6.5 meters, but can be extended to 9 meters to a maximum of 12 meters using special modules to be purchased as optional expansions.

We have developed this machine to favor many customers who, as a first purchase, prefer to buy a small trimming machine.

The ability to increase the working width, allows the customer to gradually purchase the pieces needed, to obtain a larger and more efficient topping machine. Finally, today it is possible to increase the size of the cutter bar through specially designed modules that can be applied later.

With the new modular LOP 65/90/120 trimming machine you start with a 6.5 m bar to finish with a practically doubled bar, so with a lot more productivity.

Another advantage is that this topping machine is adaptable to any plot of land, by virtue of its changeable dimensions it is ideal for any type of extension.

Naturally it preserves the appreciated mechanics of the other models, safe and indestructible machines. Adding appendices is a simple job.

In this type of modular model, the price/size ratio is more interesting than all our other topping machines.

Standard equipment

Belt transmission
Hydraulic drive
Pendular compensation for stabilizing the oscillations caused by uneven grounds
Hydraulic tilt adjustment for working on sloping terrain
Revolution counter and hours counter for monitoring the use of time

Optionals

Predisposition for 3-point attachment to the rear of the tractor
Additional hydraulic control unit.

Rear 3-point hitch

LOP 65/90/120	BASE 65	ESPANSIONE 90	ESPANSIONE 120
Lenght (mm)	1100	1100	1100
Width max (mm)	6600	8900	12100
Cut width (mm)	6500	8800	12000
Transport width (mm)	2600	2600	2600
Height (mm)	2300	3500	3500
